Compatibility

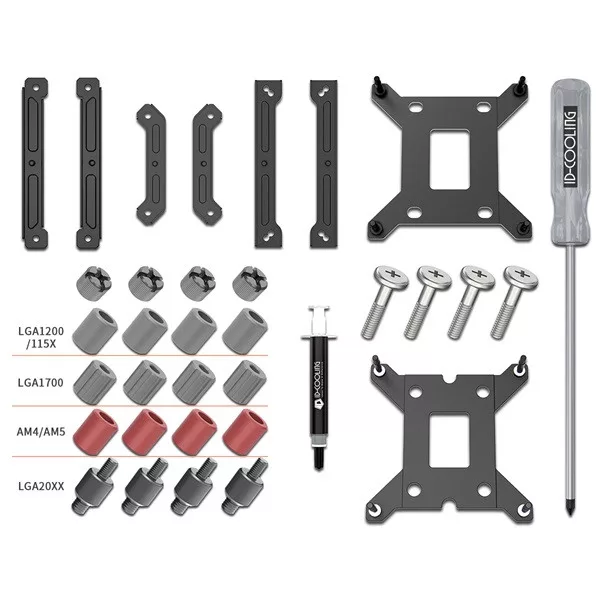

Intel LGA2066/2011/1700/1200/1151/1150/1155/1156
AMD AM5/AM4
TDP
350W

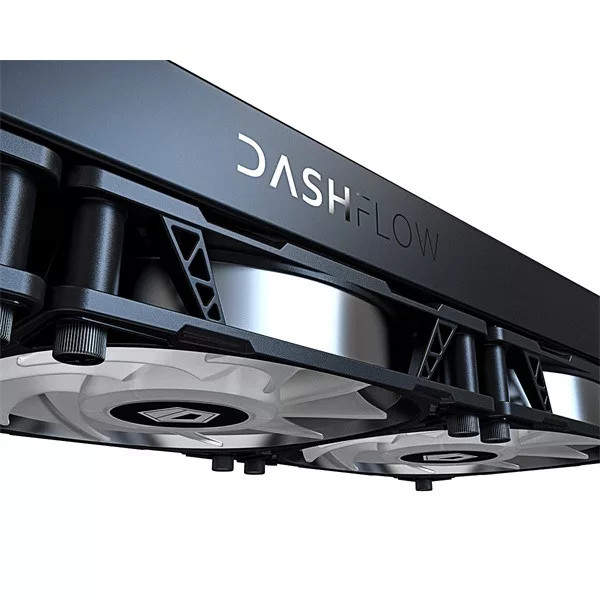

Radiator Dimension
396×120×27mm
Radiator Material
Aluminum
Tube Material
Premium Sleeved Tubing

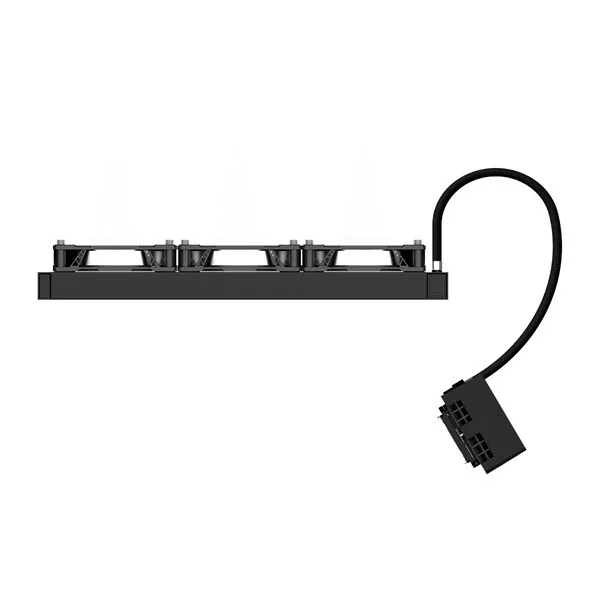

Tube Length
465mm

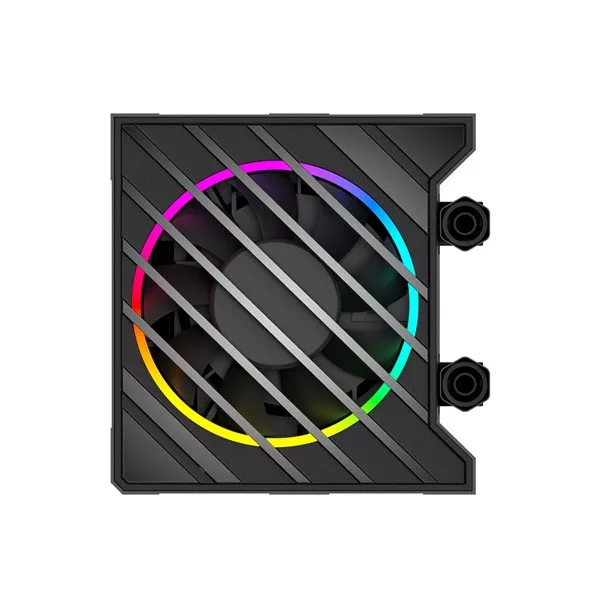

Waterblock Dimension
94x90x62mm

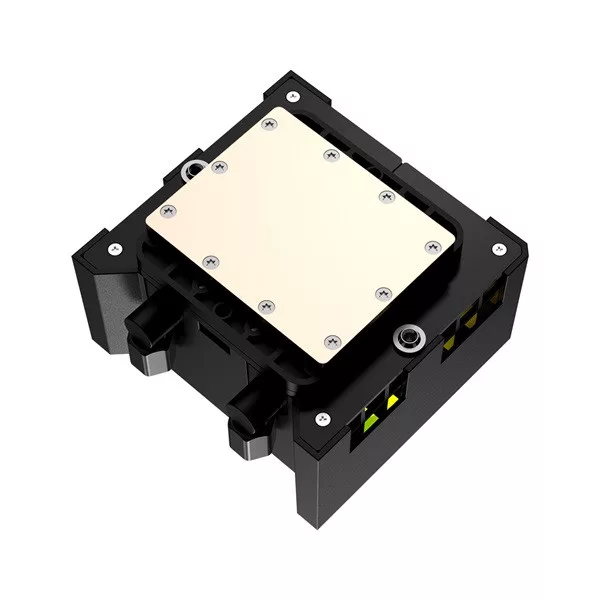

Cold Plate Material
Copper
Pump Current
0.32A MAX.
Pump Speed
0~2500RPM
Pump Bearing
Ceramic Bearing
Pump Life Expectancy
50,000 Hrs
Pump Noise Level
≤25dB(A)
Rated Voltage
12VDC
Operating Voltage
10.8~13.2VDC
Started Voltage
7VDC
Power Input
3W
Connector
4Pin PWM
we have revised the fans in version 2.

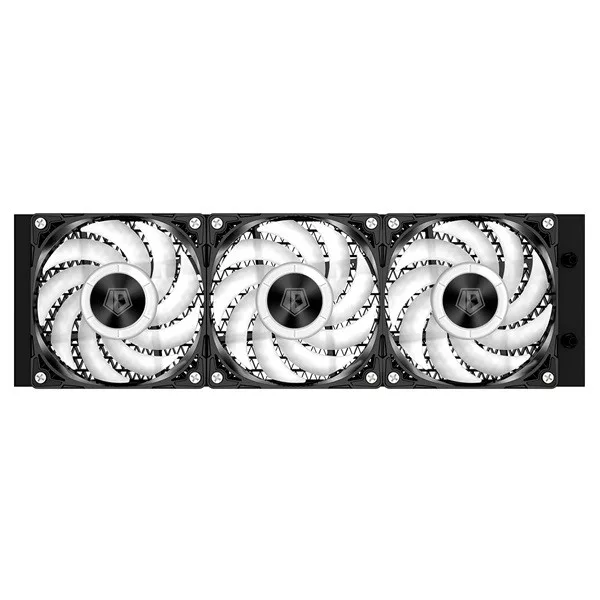

Fan on Radiator (V1)
Fan on Radiator (V2)
Fan Dimension
120×120×25mm
Fan Speed
900~2000±10%RPM
900~2400±10%RPM
Max. Static Pressure
2.68mmH2O
2.72mmH2O
Max. Air Flow
85.0CFM
85.5CFM
Noise Level
32.5dB(A) Max.
33.5dB(A) Max.
Current Input
0.25A
0.18A
LED Lighting
5V ARGB
Bearing
2 Ball Bearing
Fan on Pump
800~2800±10%RPM
1.92mmH2O
23.0CFM
28.0dB(A) Max.
0.08A
Ball Bearing
